Make

Make: Pursuit
Builder: Pursuit

Measurements

Length Overall: 37.92 ft
Max Draft: 3.25 ft
Bridge Clearance: 9.75 ft
Beam: 12.00 ft

Engines

Total Power: 450|horsepower
Engine Brand: Yamaha
Year Built: 0
Engine Model: Digital 450 XTO – XF450NSA2
Engine Type: Outboard
Engine/Fuel Type: unleaded

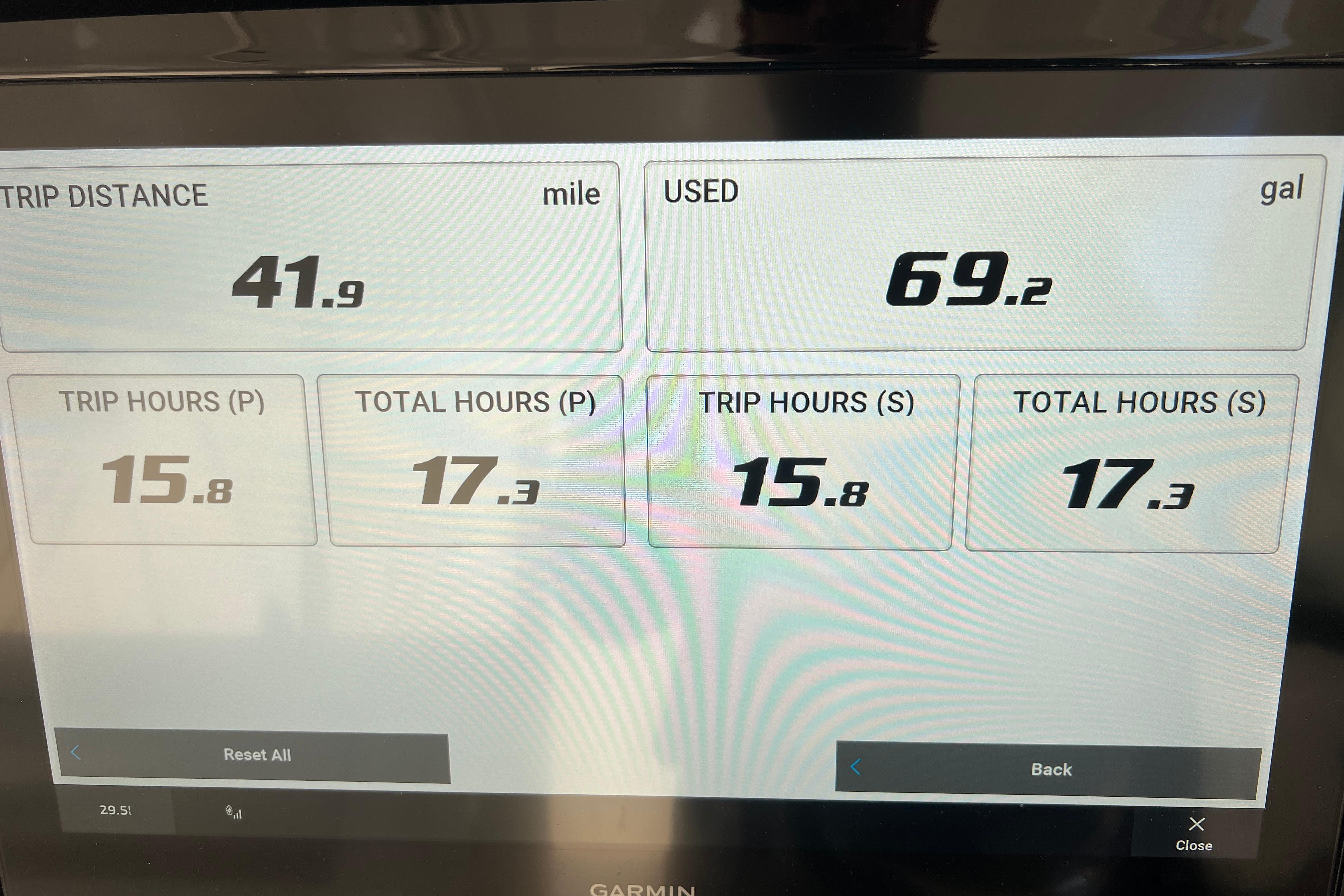

Engine Hours: 17
Engine Power: 450|horsepower

Tanks

Fresh Water Tanks: 1 (50 Gallons)
Fuel Tanks: 1 (388 Gallons)

Steering System
Joystick Control Vessel Added Options

MECHANICAL SYSTEMS

• Cockpit Air Conditioning w/ Reverse Cycle Heat 240V / 60Hz (16,000 BTU)
• Spot Light (ACR RCL-100 LED) w/ Remote Control at Helm
• COMFORT & CONVENIENCE
• Bridgedeck Teak Table with Storage
• Folding Gunwale Seat (Starboard)
• Premium Stereo Upgrade: All Speakers Upgraded to Sport Grilles with Full Spectrum Backlighting (Controlled Through MFDs), and SiriusXM® Receiver with Antenna (Incudes 3 Month Subscription)

WEATHER OPTIONS

• Custom Hardtop Integrated SS Electric Retractable Makefast Sunshade with One Touch Operation
• Standard Canvas Upgrage Stamoid with Makrolon Windows (White)
• 3 pc. Drop curtain – Stamoid® (White)
• Aft Curtain – Stamoid with Makrolon Windows (White)
• Instrument Cover – (Blue)

ELECTRONICS

• Garmin Radar Open Array GMR Fantom 54
• Garmin GC-14 Rear Facing Camera
• Garmin® Electronic Package: Dual GPSMAP 8616 [1XSV] with B175M  20 Degree 1KW CHIRP Transducer, NMEA 2000 Starter Kit, Pursuit Custom Dash Panel, Yamaha Gateway with cable, VHF Antenna, Garmin® 315 VHF Radio
• Garmin AIS 800 Blackbox Transceiver

WEATHER OPTIONS

• Mooring cover
• Window shades

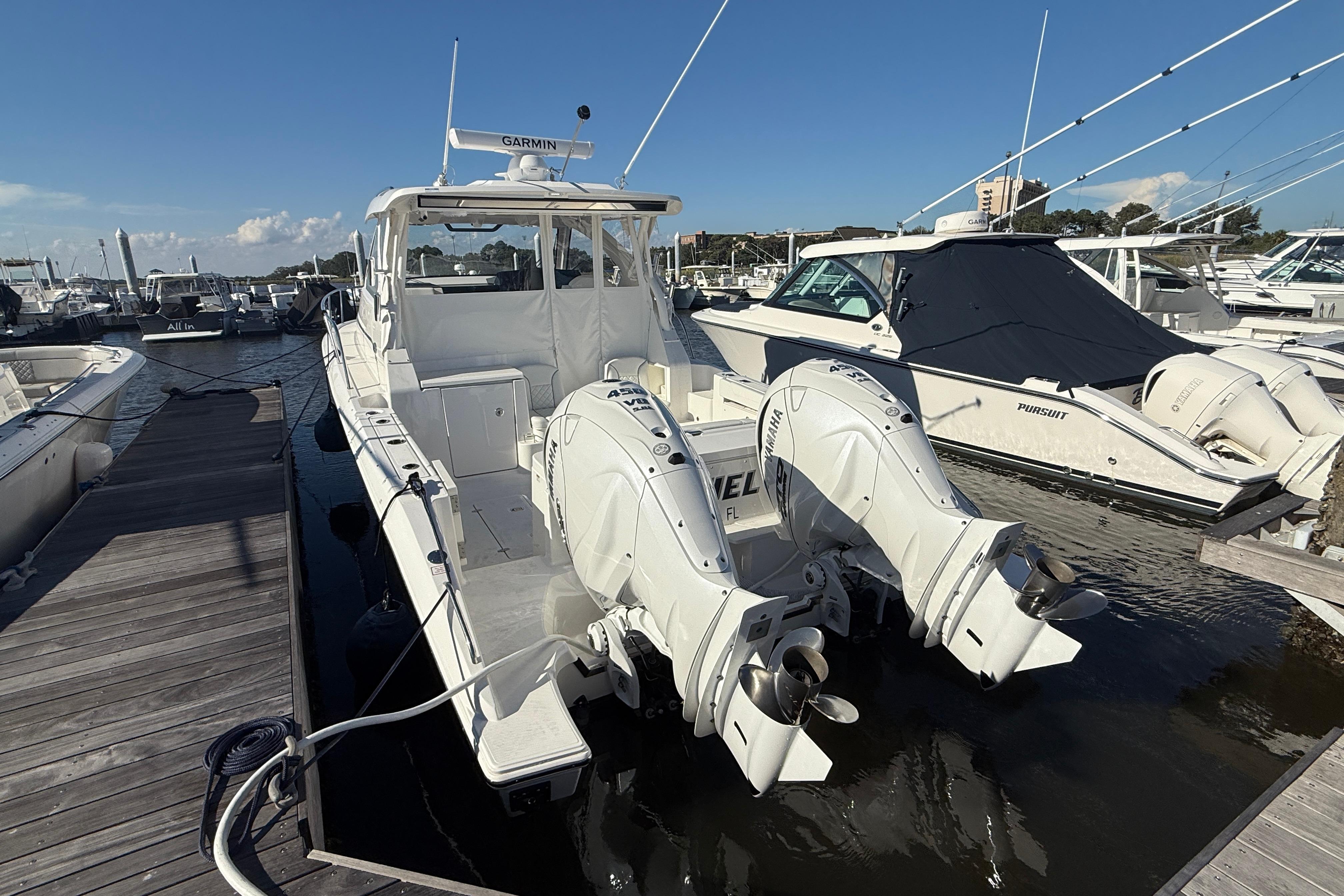

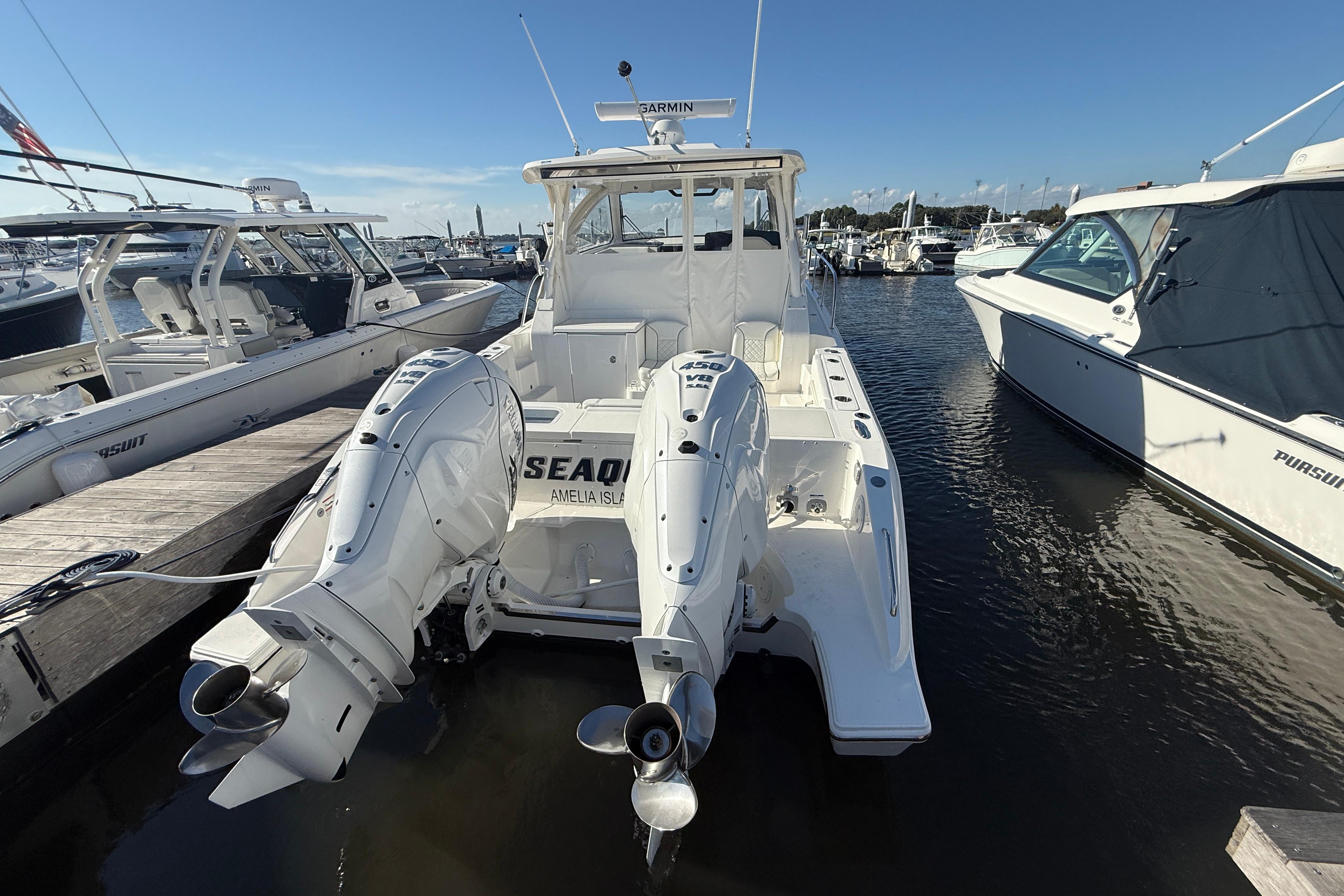

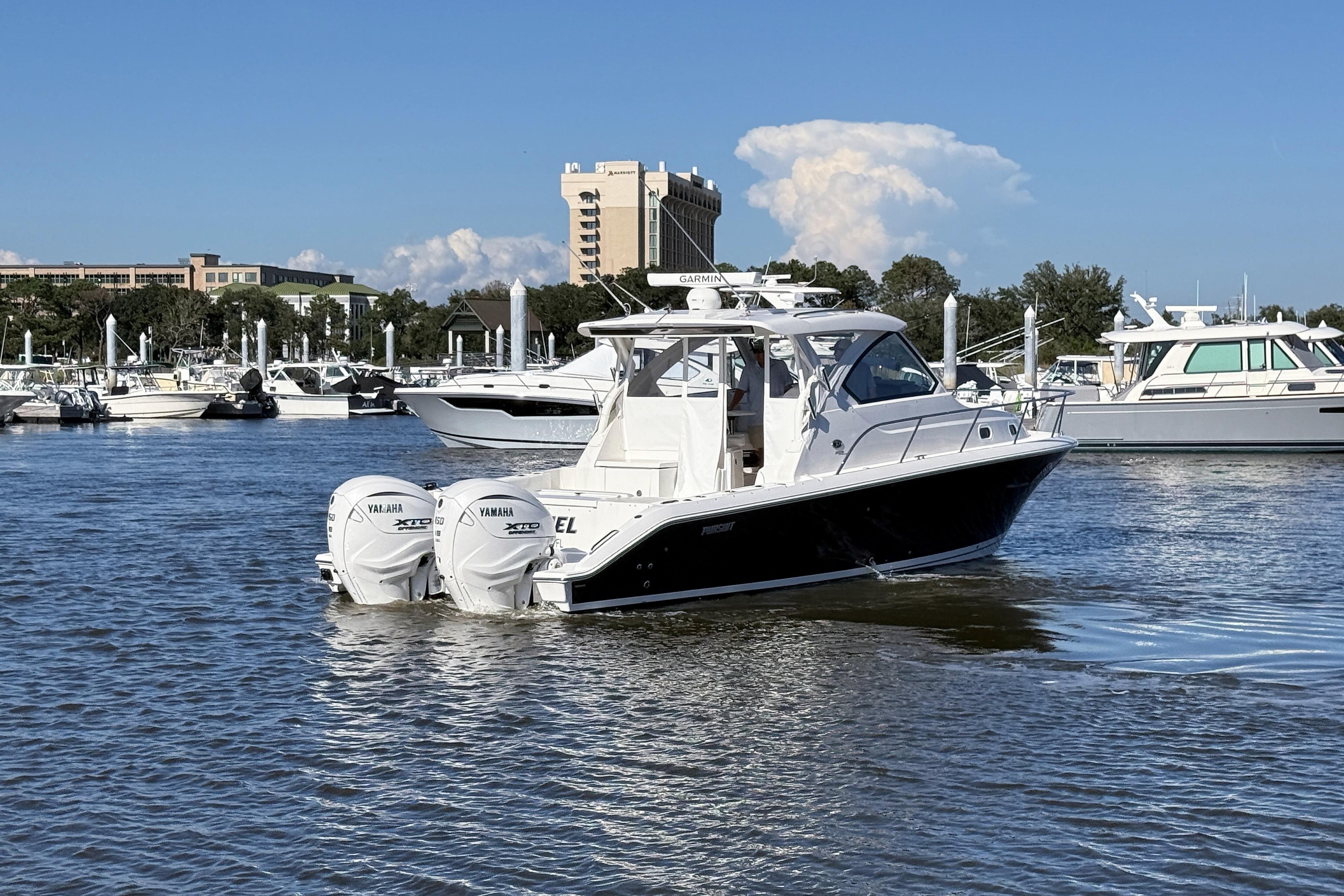

Twin Yamaha® Digital 450 XTO (Pearlescent White) with:

• Integrated Digital Electric Steering (DES)
• Helm Master® EX Digital Electronic Control (DEC)
• Yamaha® Joystick Control with Full Maneuverability (Set Point and Autopilot)
• Multifunction Display Interface
• Cockpit-Mounted Manual Engine Flushing Ports

FISHING FEATURES

• Rod Holders (4), Stainless Steel, in Gunwale

• Lighted Oceana Blue 28 Gallon Recirculating Livewell

• Under Gunwale Rod Storage (Port and Starboard)

• Fish Boxes, Insulated, and Diaphragm Pumps with Overboard Discharge (Port and Starboard)

• Cockpit Tackle Center

• Integrated Corian® Cutting Board on Transom

HULL FEATURES

• Pursuit® Protection Plan: – 5 Year Hull and Deck Structural Warranty – 5 Year Blister Free Warranty – 2 Year Limited Warranty

• Pursuit® Fresh White Gelcoat

• Hand Laminated Hull with Vinyl Ester Resin and Engineered Fabrics

• 5 Ply Resin Infused Composite Transom System with Patented Transom Reinforcement Grid

• Infused Fiberglass Structural Grid System with Molded Finish and Integrated Bilge Water Management System

• Foam Filled Structural Grid

• Bronze Thru Hull Fittings Below Water Line

• Chrome Over Bronze Thru Hull Fittings Below the 7 Degree Heel Line

• Stainless Clad Composite Thru Hull Fittings Above the 7 Degree Heel Line

• Bronze Garboard Drain

• Trim Tabs, Lenco Electric with Auto-Retract

• Bow Eye, 5/8″ 316L Stainless Steel

• Integrated Transom Platform Extensions Outboard of Engines

• Boarding Ladder, 4-Step Telescopic, Mounted in Hull Platform

• Anchor System, Integrally Molded Thru-Stem

• Bow Thruster, 3.0 HP (2.2 kw) with Group 31 AGM Battery, Switch and Fuse

• Molded Hull Side Frameless Tempered Glass Windows

• Dedicated Transducer Location

• Forward Hull One (1) 1100 GPH Bilge Pump with Automatic Float Switch

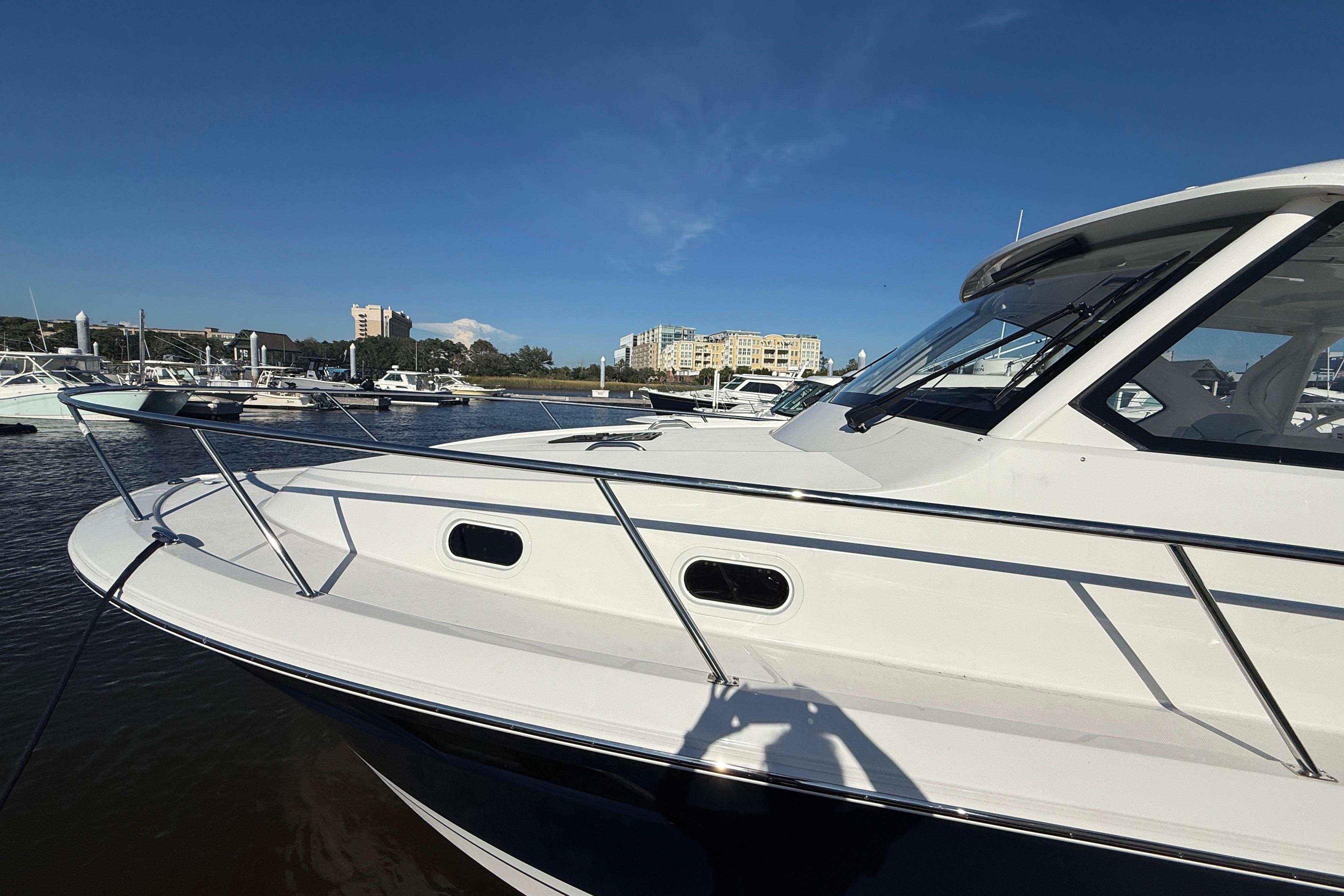

• 316L Stainless Steel Foredeck Grab Rails (Port and Starboard)

DECK FEATURES

• Hull and Deck Joint: Mechanically Fastened and Includes Aluminum Backing Plates At Cleat Locations

• Rub Rail: High Density PVC with Solid 316L Stainless Steel Insert

• Transom Cap, 316L Stainless Steel

• Molded One Piece Deck and Cockpit Liner with Non-Skid Pattern Area

• Flush Mounted Integral Anchor Locker with Fiberglass Lid Including: Horizontal Anchor Windlass with Switch at Helm and Remote at Anchor Locker 316L Stainless Steel through Stem Anchor Roller with 8″ Mooring Cleat, Chain Binder 22lb Stainless Steel Plow Style Anchor, Self-Righting Shackle and 200’ Rode (1/2″ 8 Plait Including 10’ of ¼” G4 Chain)

• Cleats, 316 Stainless Steel, 10″ Pop Up (2) Stern, 10″ Fixed Spring (2) and (2) Bow

• Molded Recessed Hatches with Gaskets and 316L Stainless Steel Latches and Overboard Drain Tracks

• Molded Transom Walkthrough with Hinged Transom Door, 316L Stainless Steel Latch and Magnetic Catch • Self-Draining Cockpit with Bronze Ball Valve at Hull Side

• Bow Rail, One-piece, Welded 316L Stainless Steel, with 1 1/4″ Top Rail and 1″ Stanchions

• Foredeck Hand Rails, 316L Stainless Steel

• Transom Grab Rails, 316L Stainless Steel, (Port and Starboard)

• Navigation Lights, LED, 2 Mile • Molded Non-Skid Steps in Splashwell for Athwartship Access

• Foredeck Hatch, 17″ x 17″, Flush with Adjuster and Screen

• Opening Port Lights (5) with Screen and Stainless Steel Frame

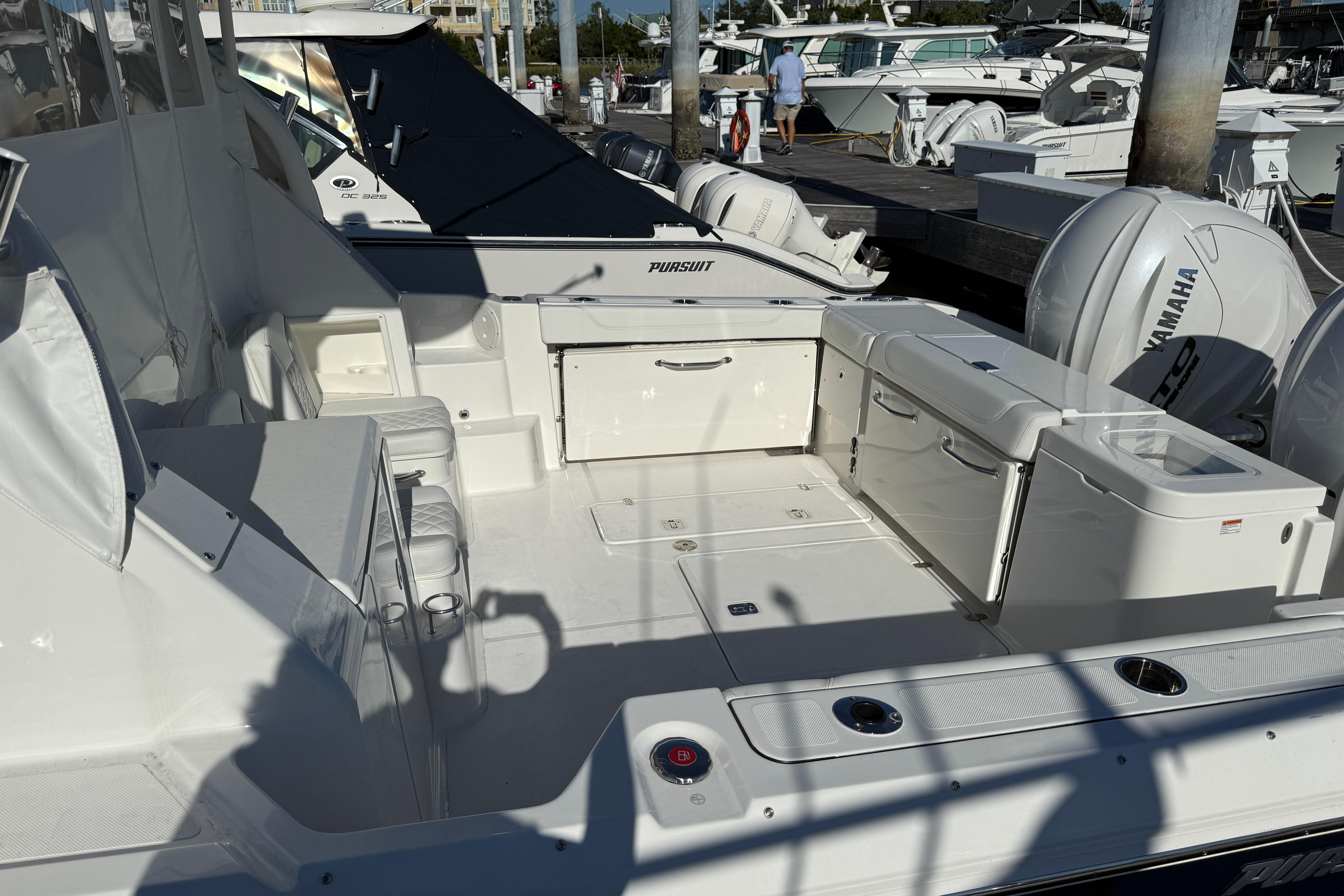

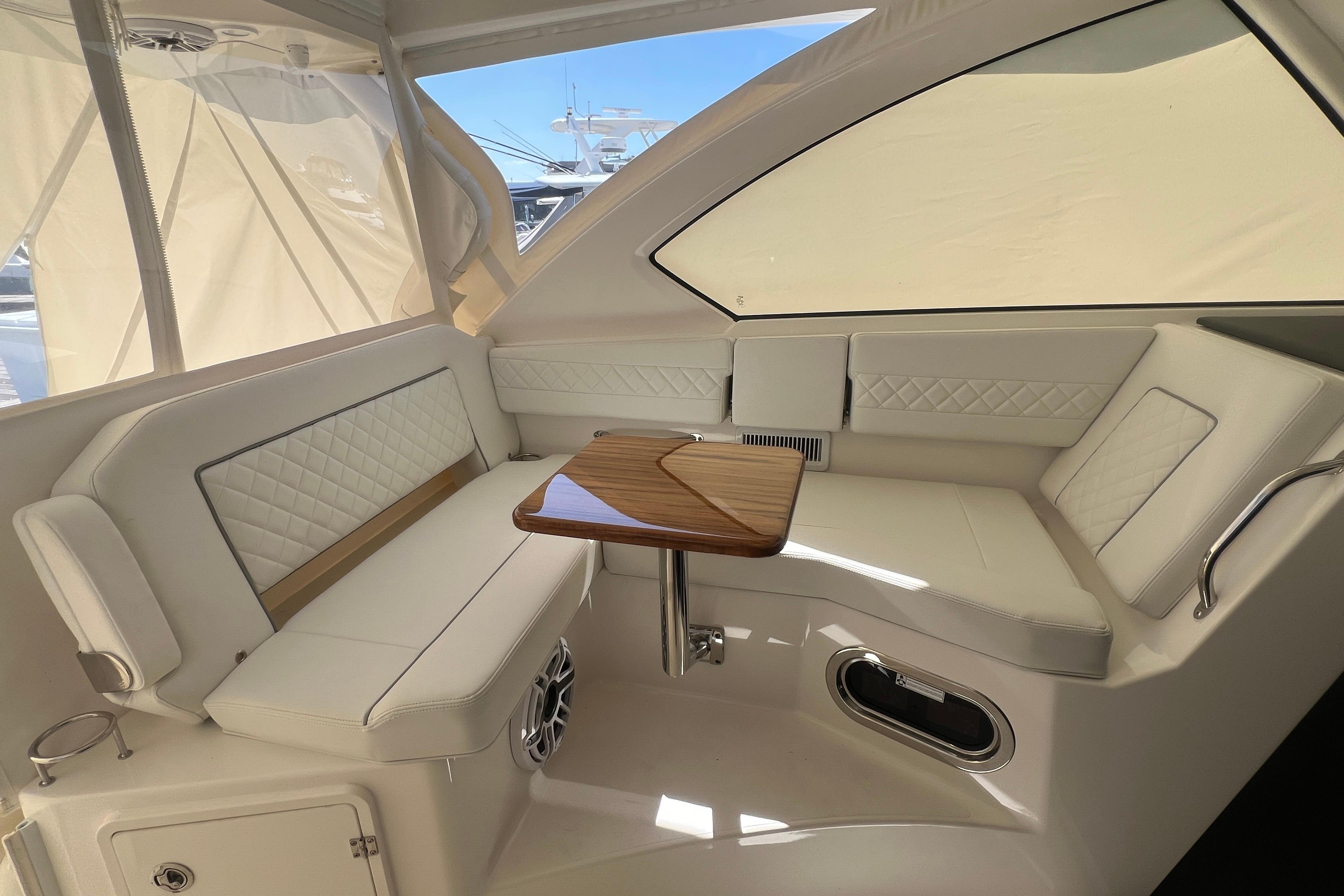

COCKPIT FEATURES

• Custom Cockpit Upholstery with Dri-Fast Foam and Mesh Backing

• Captain’s Chair with Swivel Base, Foldable Armrests, Fore and Aft Adjustment and Flip-up Bolster

• Molded Port Bridge Lounge Seating with Large Backrest, Folding Armrest (inboard), Molded Footrest, Port Articulating Armrest, and (3) 316L Stainless Steel Drink Holders in Seat Base

• Audio Entertainment System: JL Audio Stereo System with Bluetooth® Compatible Media Master MM105-HR Hidden Source Unit, Helm-Mounted Volume Control Knob, Premium M6 Coaxial Speakers with Classic Grilles – (4-Hardtop, 2-Cabin), 10″ Subwoofer (1), Amplifier, Wireless Remote Control, and FM Antenna with Ratchet-Mount Base

• Molded Entertainment Center with Sink, Hot/Cold Mixing Faucet, Electric Grill, Cutting Board, 120v Outlet with GFI Protection and Hinged Fiberglass Lid and Doors

• Molded Port and Starboard Aft Facing Seats with Insulated Storage Below

• 1.3 cu. ft. Bridgedeck Refrigerator/Freezer with Fiberglass Lid

• Folding Transom Seat with Patented Adjusting Backrest

• Three (3) 316L Stainless Steel Drink Holders on Bridge Lounge, Two (2) Acrylic Drink Holders at Helm and Two (2) 316L Stainless Steel in Gunwale

• Cockpit Machinery Access Hatch

• Fresh Water Wash with Hot/Cold Mixing Valve and Chrome over Brass Pull-out Sprayer at Transom Door

• Raw Water Outlet in Cockpit with Quick Connect Fittings and 25’ Hose

• LED Cockpit Accent Lights (7) with Waterproof Switch in Cockpit

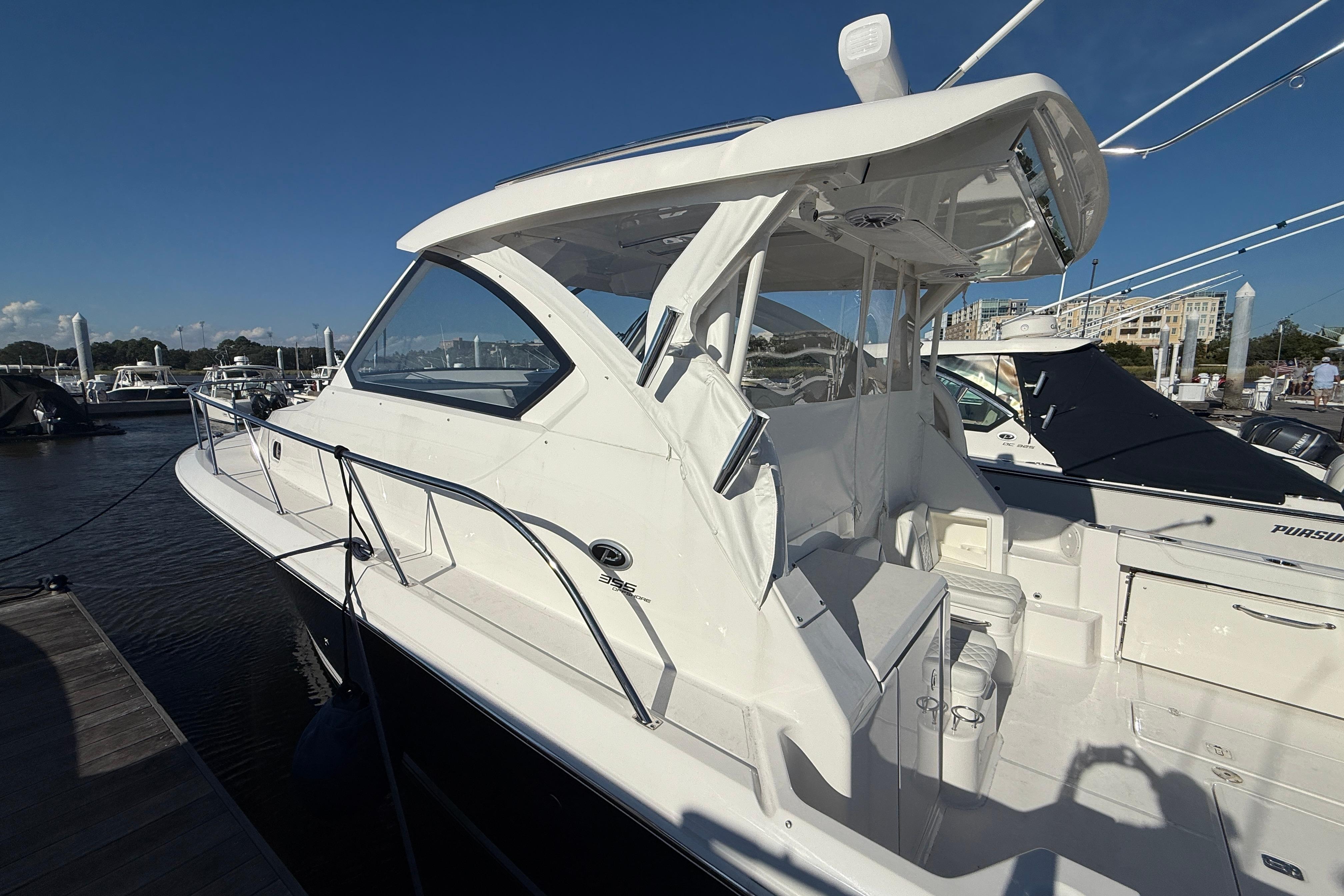

HARDTOP & WINDSHIELD

• Molded Fiberglass Hardtop with Integrated Visor and Designated Locations for Radar, Outriggers, and Spotlight

• Powder Coated Aft Structural Hardtop Supports with Rod Holders (4)

• Custom Windshield System with Optically Clear Laminated Windshield Glass, Tempered Side Glass with Infused Fiberglass Frame and Electrically Actuated Center Vent Window

• Power-Actuated Stainless Steel Anchor/Stern LED Navigation Light with Burgee Rings and Embroidered USA Flag

• Four (4) Tri Color LED Lights

• Indirect Lighting Over Dash

• Aft Facing Spreader Light

• 316L Stainless Steel Fore/Aft Underside Grab Rails

• 316L Stainless Steel Fore/Aft Topside Grab Rails • Integrated Stereo Speakers (4)

• 60 mil Strataglass Side Curtains

• 3 Piece Drop Curtain

• Integrated Life Jacket Storage

• Integrated Port and Starboard Overhead Glove Boxes

• Horn, Trumpet

• Port and Starboard Ventilation Hatches with Screens

• Port and Starboard Heavy Duty Pantographic Windshield Wiper System with Washer Control

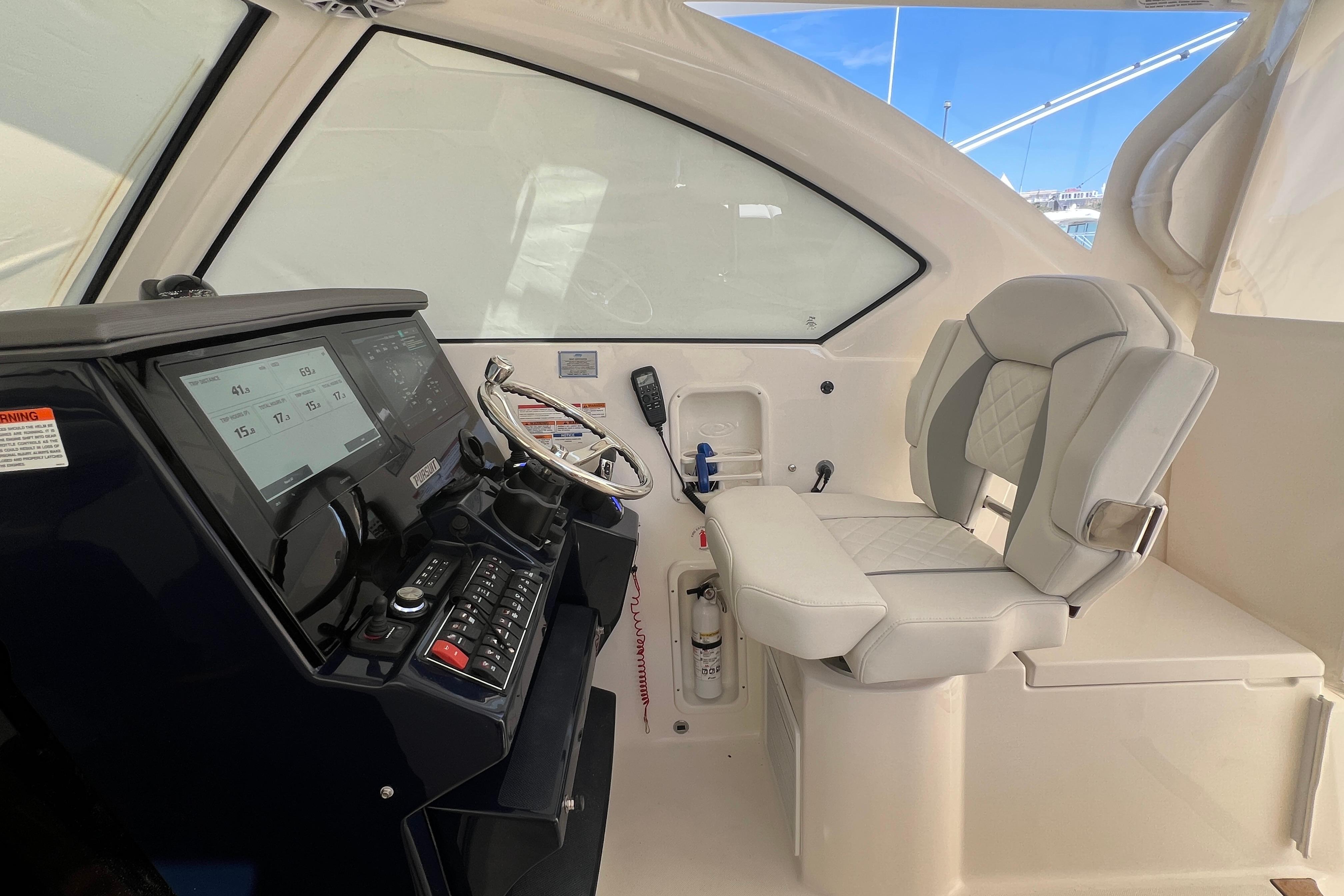

HELM

• Molded Fiberglass Aft Tilting Helm with Instrumentation Visor, Electronics Mounting Surface, Fold Out Fiberglass Footrest/Platform and Safety Lanyard

• 316L Stainless Steel Steering Wheel with Control Knob and Non-Slip Grip on Sport Tilt Plus Helm

• 12V Panel with Illuminated Carling® Rocker Switches

• Compass

• Trim Tab Control Panel and Indicator

• Bow Thruster Joystick Control

• JL Audio MM105-HR Hidden Source Unit (Full-function Control on Garmin® MFDs) and Helm-Mounted Volume Control Knob

• Two 12V Outlets (2) and Dual USB (A & C) Charger (1)

• Helm Drink Holders (2) in Side Panel

• Helm Fire Extinguisher

ELECTRONICS

• Garmin® Electronic Package:

• Dual GPSMAP 8616 [1-XSV] with Custom Pursuit User Interface (UI) Displays
• Custom Dash Panel
• B175M 20 Degree 1KW CHIRP Transducer
• NMEA 2000 Starter Kit
• Yamaha MFDI Interface
• VHF Radio with Antenna and Ratchet-Mount Base

• SirenMarine® Connected Boat® Smart Boat Monitoring & Theft Deterrent System:

• Siren 3 Pro Main Device with Mobile App Interface
• GPS Vessel Tracking
• Sensors for Battery
• Shore Power
• Bilge and Security Monitoring

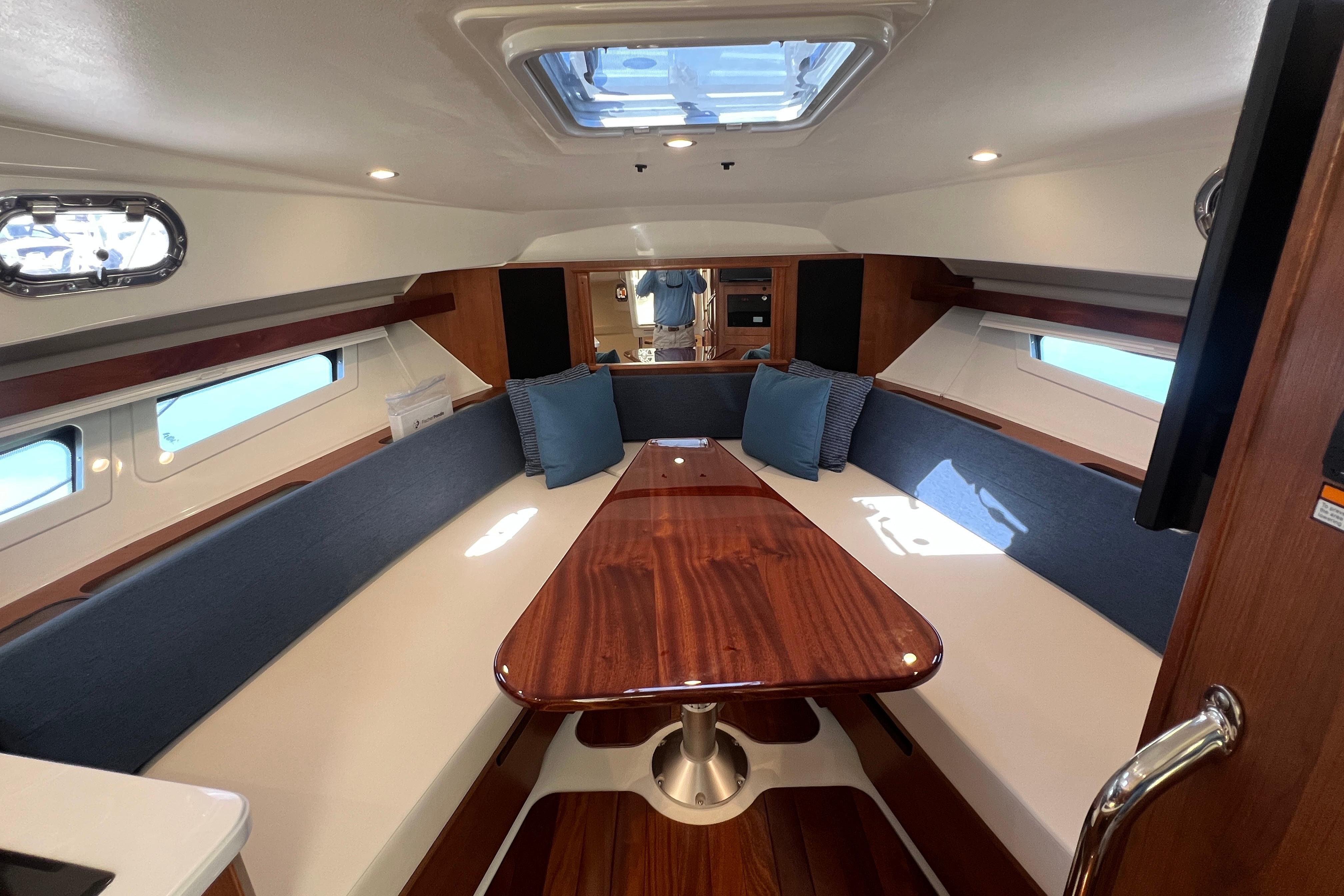

CABIN

• Molded Acrylic Access Door with Secondary Framed Screen Door and 316L SS Locking Latch

• Cabin Entry Steps with Custom Handrail and Wood Treads

• Molded Cabin Hull Liner with Custom Solid Wood Tongue and Groove Floor Accents, Mechanical Access, Drainage and Sound Damping Insulation

• Molded Cabin Deck Liner with Sound Damping Insulation

• 240V/60 Cycle Interior Air Conditioning with Reverse Cycle Heat and Sound Shield. 16,000 BTU

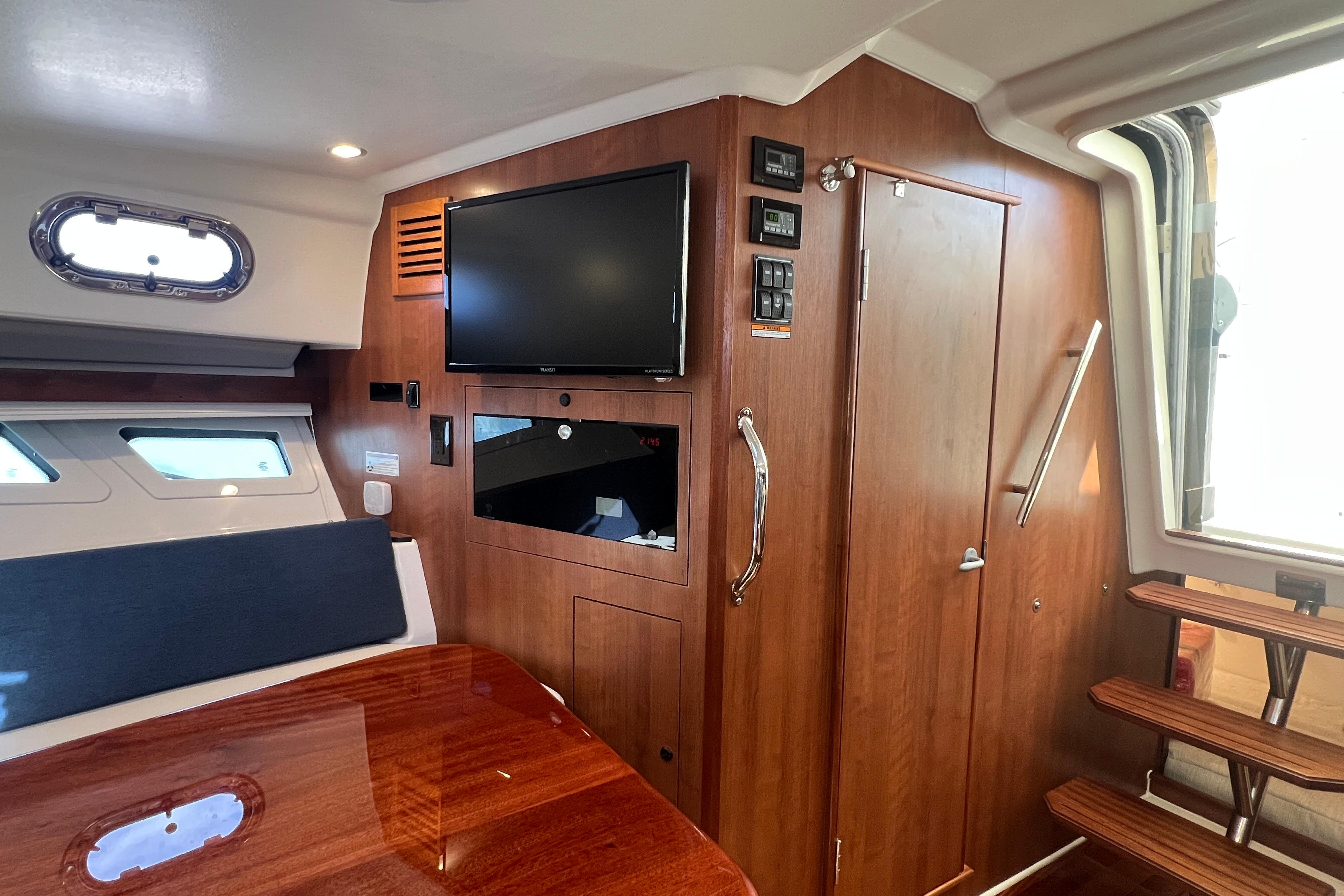

• Pursuit Digital Media Ready Entertainment Center with 28” LED TV and Dedicated, Amplified TV Audio System

• JL Audio Stereo Speakers (2)

• Electrically Actuated Custom V-Berth Seating with Fixed Cushions that Converts into Queen Size Berth

• Solid Wood Table with Power Adjustable Pedestal

• Forward Hardwood Framed Accent Mirror

• Hull Side Windows Port and Starboard in Forward Berth with Accordion Style Blinds

• Forward Gunwale Storage Shelves Port and Starboard

• Forward Outboard Storage Compartments Port and Starboard

• 7.5 cu. ft. In Floor Storage with Solid Wood Hatch

• Cedar Lined Hanging Locker with Automatic LED Light

• Flush Mounted Opening Foredeck Hatch with Screen

• 316L Stainless Steel Opening Port Lights (3) with Screen

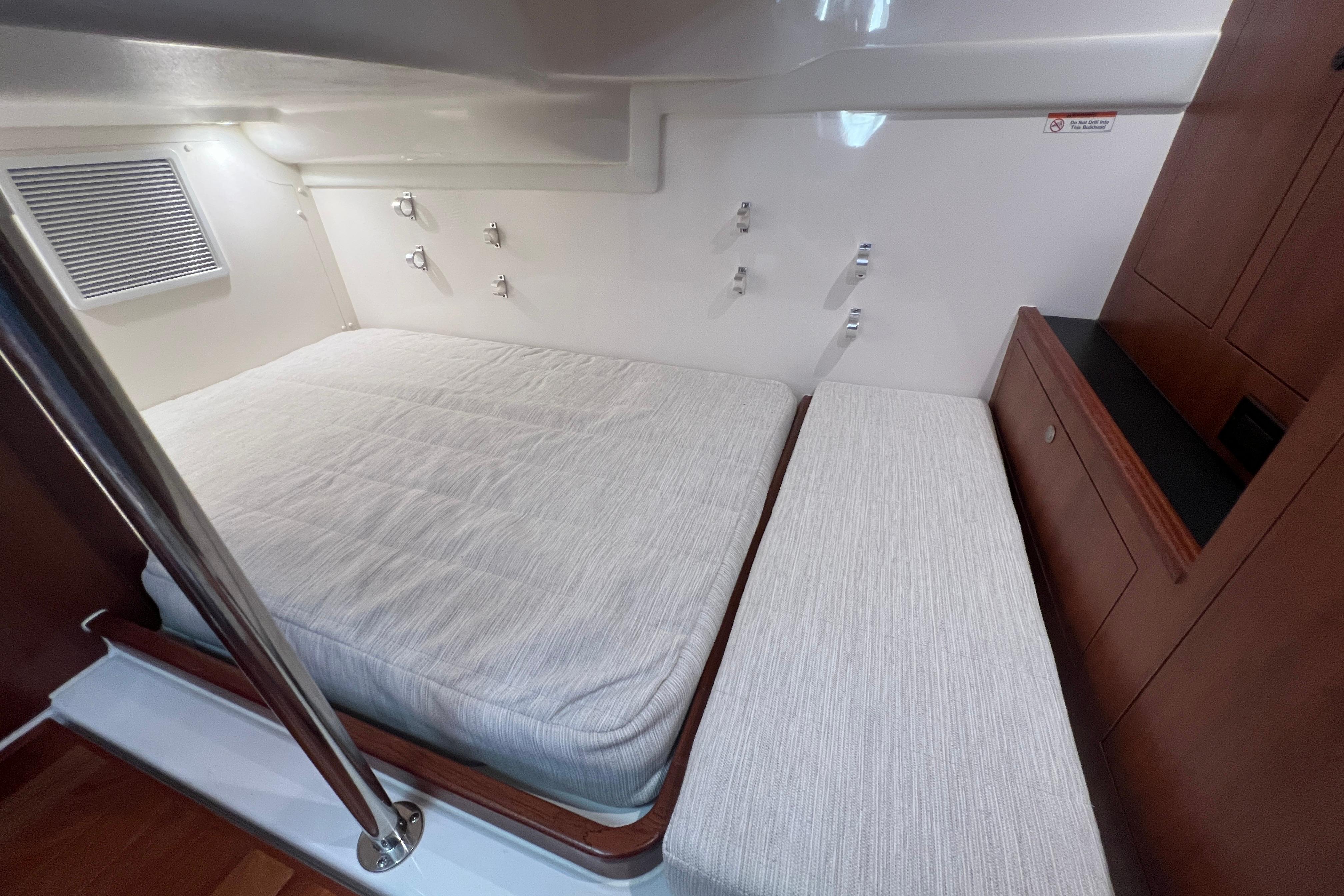

• Mid-berth Recessed, Wood Framed, Full-size 6” Innerspring Mattress with Filler Cushion

• Mid-berth Hanging Locker and Storage to Portside

• Mid-berth Horizontal Rod Storage for (4) Rods

• 12V Outlet (1) and Dual USB (A & C) Charger (1)

• Six Switch Panel with LED Floor Accent Light (2), Overhead Dinette Light, Fwd Reading Lights (2), Overhead Galley Lights (2), Dedicated Galley Surface Light (1) and Table Actuator

• CO Monitor

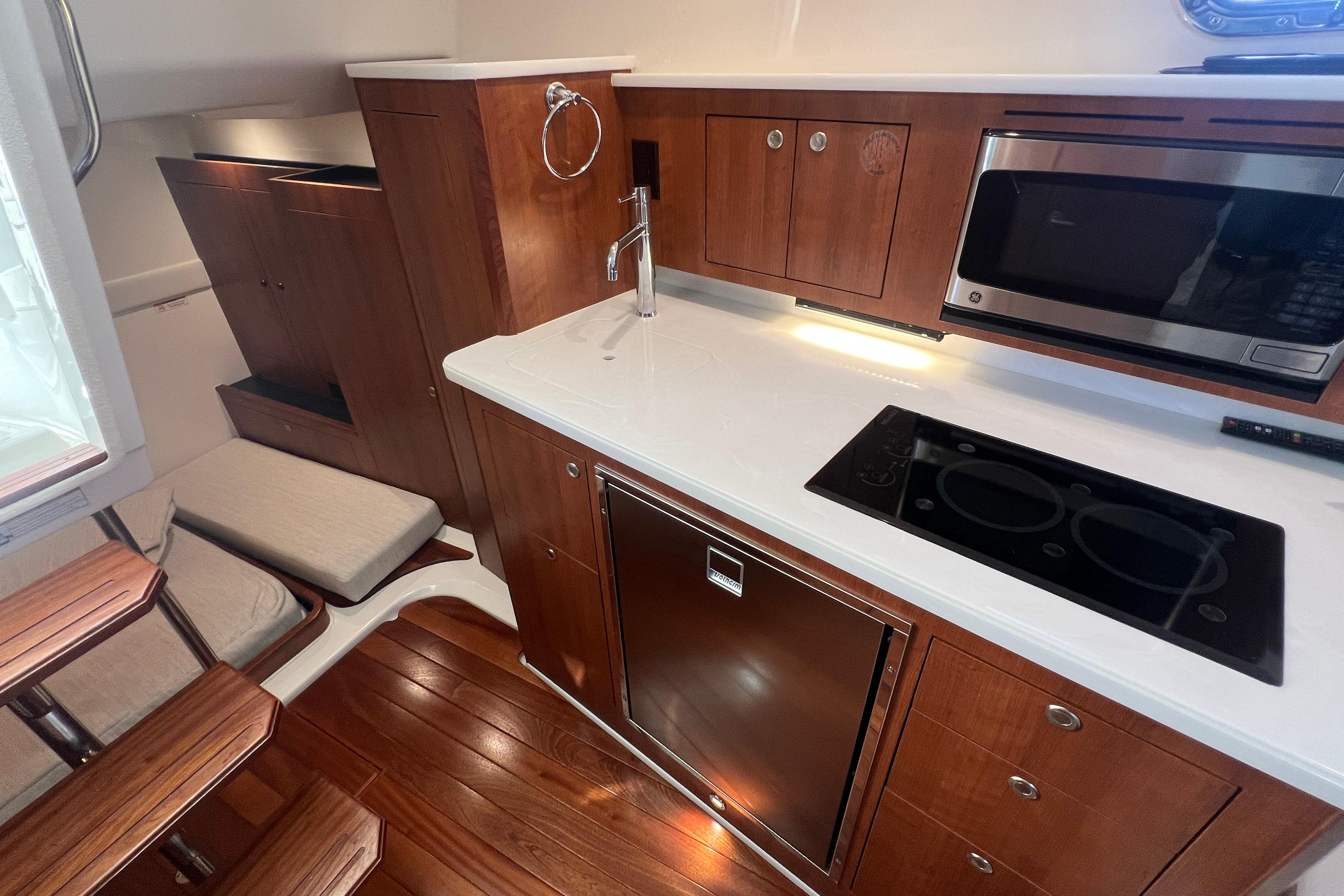

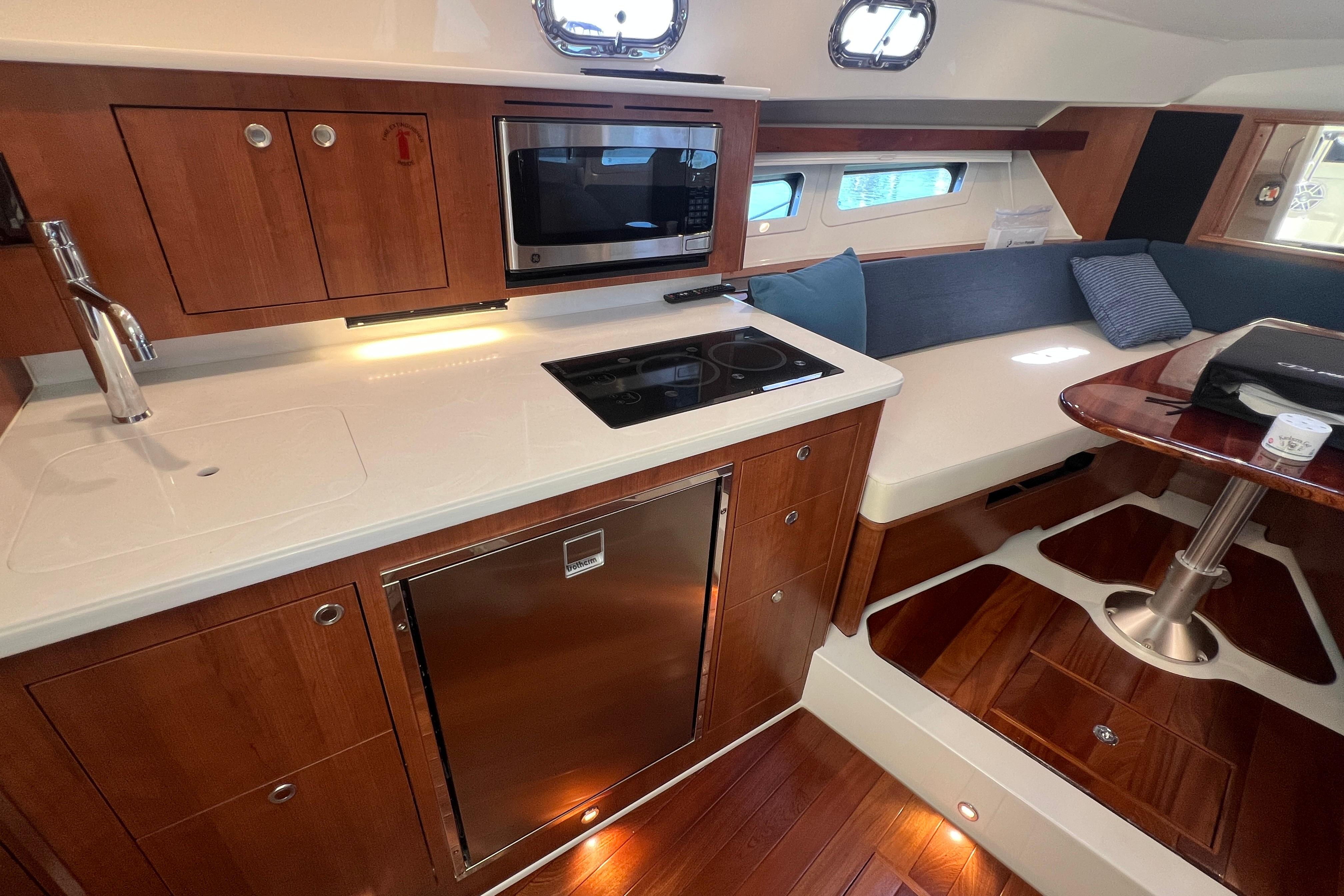

GALLEY (PORT)

• Corian® Galley Counter Top with Backsplash and LED Cabinet Surface Lighting

• Stainless Steel Sink with Cutting Board Cover, Overboard Drain and Stainless Clad Composite Thru Hull Fitting

• Pressurized Hot/Cold Mixing Valve and Faucet

• Galley Lower Storage Cabinet with Maple Drawers (3), Dedicated Storage and Trash Can

• Galley Pantry Storage Locker with Storage Shelves and Hardwood Keepers with Corian® Top

• Galley Upper Cabinet Storage with Doors and Corian® Top

• 12V, 4.6 cu. ft. Stainless Steel Refrigerator

• 12V LED Overhead Light (2)

• 240V Dual Burner Glass Cook Top with Touch Controls and Pop-up Pot Holders

• 120V 1.1 cu. ft. Stainless Steel Faced Microwave Oven

• 120V Outlet with GFI Protection (1)

• Fire Extinguisher

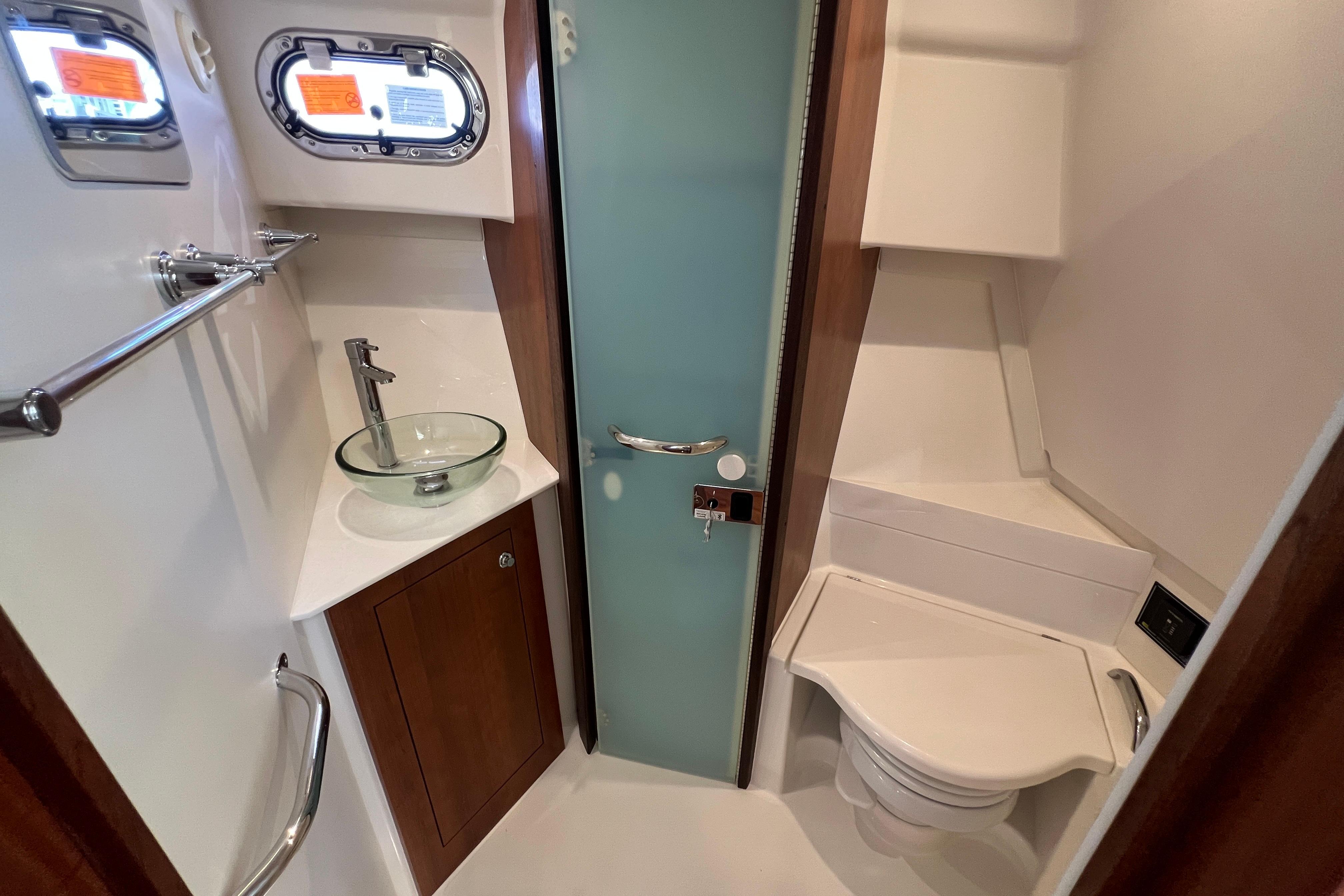

HEAD (STARBOARD)

• Fiberglass Enclosed Head Compartment with Non-Skid Pattern Area

• Custom 1 1/4” Wood Framed Entrance Door with Custom Latch and Full Length Mirror

• Corian® Countertop with Storage Cabinet Below

• Designer Sink with Pressurized Hot/Cold Faucet

• Vacuum Flush Marine Head with 22 Gallon Holding Tank, Macerator Discharge Pump, 316L Stainless Steel Deck Pump-out Fitting and Bronze Thru Hull Fitting with Seacock

• Fiberglass Toilet Seat Cover

• Full Height Linen Closet with Shelves and Acrylic Bi-Fold Shower Divider

• 316L Stainless Steel Opening Port Light with Screen

• Vanity Storage Cabinet with Shelves and Vanity Mirror

• Toilet Tissue Holder

• Grab Rail/Towel Rack

• Shower with Hot/Cold Mixing Valve, Shower Wand and Adjustable Height Bar

• Shower Sump Box Drain with Automatic Discharge Pump

• Two Switch Panel with Overhead LED Lights (2) LED Floor Accent Light (1)

• 120V Outlet with GFI Protection (1) (Inside Upper Vanity Cabinet)

ELECTRICAL SYSTEMS
• UL® Rated Fully Tinned, Color Coded Copper Wire

• Custom In-House Built, Heat Sealed, Mechanically Crimped, Color Coded Battery Cables

• Custom In-House Built, One-Piece Electrical Harness with Waterproof Connectors and Chafe Protection

• Powder Coated, Aluminum, Screen Printed (Front and Back) Battery Switch and Breaker Panel

• Bonding System: Thru Hull Fittings Below Water Line, Trim Tabs, Zinc Anode and Garboard Drain

• Five Battery System: Port Engine (1), Starboard Engine (1), Bow Thruster (1) (AGM) and House (2) (AGM) Single 240V 50 Amp 60 Cycle Dockside Power Connection

• Dockside Power Connection (Single 240V 50 Amp 60 Cycle) with AC Main Distribution Panel, Isolation Transformer, and Electrically Retractable 50\’ Power Cord (with Adapter)

• One (1) 40 Amp Battery Charger for House, Electronics and Bow Thruster Batteries

• One (1) 25 Amp Battery Charger for Engine Cranking Batteries

• One Grounding Bus Bar

• Electronics Fuse Block

MECHANICAL SPACE

• Molded Interior White Gel Coat

• Molded Hatch with Gasket and Stainless Steel Gas Springs

• Molded Bilge Sump Area

• Mechanical Space Access Step

• Stern Anchor, 4 lb. Aluminum Adjustable Fluke-Style with 50\’ of 1/2″ Anchor Rode, 5\’ of 1/4″ G4 Chain, and Custom Pursuit Storage Bag

• One Low Profile 900 GPH Bilge Pump with Integrated Float Switch, One 1500 GPH Bilge Pump with High Water Float Switch and Alarm with SS Clad Composite Thru Hull Fittings

• Fresh Water Pump with Filter

• Raw Water Pump Seacock and Thru Hull Fitting

• Livewell Cyclone Pump with Bronze Sea Strainer, Seacock and Thru-hull Fitting

ELECTRICAL SYSTEMS

• Dedicated Fish Box Diaphragm Evacuation Pumps

GENERATOR

• 240V/60 Cycle 8.0 kw Fischer Panda® Diesel Generator with Sound Shield and Service Slide

• EPA Compliant Lined 24 Gallon Rotomolded Fuel Tank with Engine Pickup, Shutoff Valves, Digital Level Indicator, Water Separating Fuel Filter and 316L Stainless Steel Deck Fill Plate

• Fire Suppression System

FUEL SYSTEM

• EPA Compliant Lined 388 Gallon Rotomolded Fuel Tank with Engine Pickups, Shutoff Valves, Digital Level Indicator and Deck Fuel Fill Plates

• Custom Built Fuel Lines with Mechanically Crimped Fittings

• Yamaha® Water Separating Fuel Filter with Primer Bulb for Each Engine

WATER SYSTEM

• 50 Gallon Water Tank with Level Indicator and 316L Stainless Steel Deck Fill Plate

• Premium Sea Tech Color Coded Water Hose System with Mechanically Crimped Ends

• Pressure Sensing/Variable Speed Pump

• Fresh Water Distribution Manifold with Dedicated Valves

• Dockside Fresh Water Inlet with Pressure Regulator

• 6 Gallon Stainless Steel Water Heater, 240V/60 Cycle

• Cockpit Shower with Hot/Cold Mixing Valve

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
